Our MG Product
Murickens, the manufacturer and dealer of MG solar water heating device of international standards, is an ISO certified company and there are two types of solar water heaters being widely used in kerala. The first one is FPC Model which is maintenance free and almost all of its parts are made up of pure copper and duly guaranteed for long durability and the second is ETC model made up of Glass Tubes. The main difference between these two models are that while in FPC Model the heat absorbent (panel) is copper fins in the ETC model it is evacuated glass tubes. Murickens products are marketed through MG marketing system under the registered brand names `MG` & `FLYLINE` and MG water heater has got a remarkable role to play in saving energy and its main attractions are very low maintenance cost ,unlimited usage and the non- requirement of a government licence. Using most modern technology and arranging subsidies for all our solar products from the Minstry of New Renewable Energy, we are highly delighted to state that we have installed innumerable Thermal Heat Converting Devices in kerala since 1993 with computer precision and unchallenging perfection.

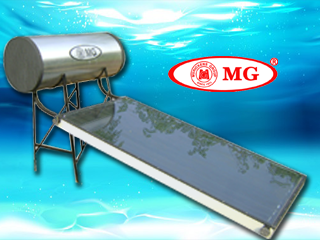

First is a MG Flat Plate Collector ( FPC technology )with an insulated, weather-proofed box containing a dark absorber plate under one or more transparent or translucent covers.
This is the most common type solar water heater. Murickens are manufacturing and marketing solar water heater in kerala . It is tested and proved 30 years ago that it is the most suitable type for Kerala’s climatic conditions.Central Government MNRE ( ministry of natural renewable energy ) providing subsidies for all type of solar water heaters through ANERT.
Murickan’s Kerala flat plate solar device contains the solar collector panels, the working fluid (water), the storage tank .Special black or dark green coatings are used to absorb the energy .The heat absorbed by collector panels with size of 2 meter length and 1 meter width with 9 copper fins are used to heat water. When solar collectors are exposed to sun light, the water flowing through tubes in the panels is heated. Copper tubes transfer the collected heat to the water more effectively than aluminum, steel or glass tubes. The covering over the collector reduces the escape of collected heat to the outside air. The cover is transparent to short-wave solar radiation, but not to infrared radiation from the selective surface .

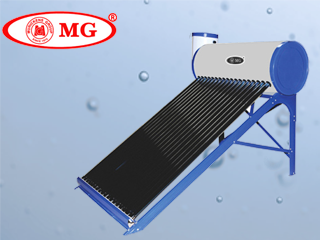

The back and side insulation, typically R-value 12, reduces conduction losses. Heated water from solar panel collects in a storage tank which is specially designed to preserve the heat for long timeThe second Model MG Evacuated Tube Collectors (ETC) are the new version of solar water heater It is very cheap in price. In this system there no electronic or electric current conversion, only heat transmission. ETC collector is made up of rows of parallel, transparent glass tubes. Each tube consists of a glass outer tube and an inner tube called absorber which is covered with a selective coating. The demerits of ETC models are, we get only very low temperature, i.e. heat up 40 ± 5°C. Water leakage through glass ceiling, chance of brakeage of tubes when it is exposed to sunlight, chance to catch fungus inside the tube and consequently lower the heat of water. On rainy season, must have use electrical heater.
MG SOLAR WATER HEATER MORE VIDEOS:-CLICK HERE
MG FPC SOLAR WATER HEATER MORE IMAGES:-CLICK HERE
MG ETC SOLAR WATER HEATER MORE IMAGES:-CLICK HERE
MG FPC WATER HEATER PDF:-CLICK HERE
MG ETC WATER HEATER PDF:-CLICK HERE
► Maintenance free. ► Water heated up to 80°C. ► No electrical hazard. ► No expenses after installation. ► The best way of getting natural hot water for cooking and industrial purpose ► Copper capillaries. ► PUF system and glass wool to avoid conduction loss for storage tank. ► Light weight. ► T I G welded fins and tubes. ► Compact in size. ► Heat expulsion. ► Fully automatic. ► High quality tempered 4mm thick front glass. ► Sturdy and weather proof design. ► Different Capacity starting from 125 liters to 10,000 liters. ► Custom built Solar Water Heater can also be provided. ► Two models FPC and ETC. ► In FPC special model we can connect pressure pump.
MG Flat Plate Collector Waterheater(FPC) Details : Click Now
MG Evacuated Tube Collector Waterheater(ETC) Details:Click Now
MG solar water heater FPC model | 125 | 150 | 200 | 250 | 500 | 1000 | 3000 |
Usage No. of person | 30 ltr Per Person | ||||||
Installation Area(sq. mt) | 4 | 4 | 8 | 8 | 16 | 32 | 96 |
Water output temp. (° C) | 85 ± 5 °C under normal Sunny conditions | ||||||
Solar Flat Plate Collector Details | |||||||
FPC Capillary Tube Model : No. fins | 9/Panel | ||||||
Collector Material | Copper | ||||||
Collector box Coating | Extruded Aluminum Powder Coated | ||||||
Collector Size | 2050 mm x 1050 mm x100 mm per Panel | ||||||
Insulation | High Density rock wool/puf insulation | ||||||
Beading | Beading & Grommet - E P D M | ||||||
Reflector | Aluminum foil of 0.015 mm thickness | ||||||
Front Glazing | 4mm Thick Toughened glass | ||||||
Bottom Plate | Aluminum Sheet | ||||||
Gasket | Gasket for flanges - Neoprene Rubber | ||||||
|
|||||||
Coating | Selective black chrome – Nalsun | ||||||
TIG welded copper-copper FIN & Tubes with black nickel chromium | |||||||
Coating (solar selectively coated) Raised dia 12.5 mm | |||||||
Insulation cover material | Aluminum sheet | ||||||
Header | 99.9 % copper 1” , 22 SWG | ||||||
Riser | 99.9 % copper ½ “ 24 SWG | ||||||
|
|||||||
Tank | Single or multiplicatioon of 1000 for higher capacity | ||||||
Tank type | Cylindrical – horizontal | ||||||
Tank material (Inner) | Stainless Steel SS 304 (Food Grade) - 0.9 mm | ||||||
Insulating material for tank | 48 Kg/Cu,metre density Rock wool slab for standard model | ||||||
Cladding | Aluminum Sheet | ||||||
Beading & Grommet | E P D M | ||||||
Working Principle | Thermosyphon | ||||||
Electrical Back-up | No need - If need 2KVA up to 500 Litr. | ||||||
Temperature of Hot Water | 60 to 80 degree cel. On normal sunny days depending on the intensity of Sunshine. | ||||||
Pressure pump model is available *Specifications are subject to change without prior notice". |
MG Solar Water Heater ETC Model | 100 | 150 | 200 | 250 |
Usage No. of person | 2 to 3 | 3 to 4 | 4 to 5 | 5 to 6 |
Installation Area(sq. mt) | 2.1 | 3.1 | 3.8 | 4.7 |
Water output temp. (° C) | 40 ± 5 °C Under Normal Sunny Conditions | |||
ETC tube Model: No. of Tubes | 10 | 15 | 20 | 25 |
Material | Glass 3.3 | |||
Coating | Selective Absorptive Coating | |||
Glass Sealing | Silicon Rubber | |||
Hot Water Tank material (Inner) | Stainless Steel SS 304 (Food Grade) - 0.5 mm | |||
Thermal Insulation | PUF Insulation | |||
Electric Heater (optional) | 2.0 KW with Thermostat |
