Our MG Product

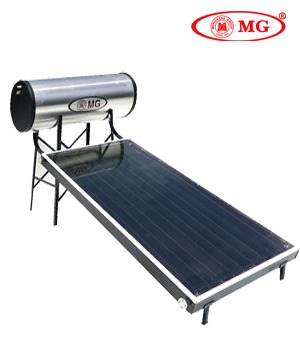

MG FPC (Flat Plate Collector)

Murickens group introduces the concept of "MG Solar Water Heater".Solar water heater or domestic hot water system is the cost effective system used to produce hot water in home. There are two type of Solar Water Heater is available in Kerala which are:- "Flat Plate Collector" (FPC) and "Evacuated Tube Collectors" (ETC).Murickens Group is an ISO certified manufacturer and supplier of solar water heating devices with International. There are two types of solar water heaters being widely used in Kerala. The first one is FPC (Flat Plate Collector) Model which is maintenance free and almost all of its parts are made up of pure copper and duly guaranteed for long durability and the second is ETC (Evacuated Tube Collector) model made up of Glass Tubes. The main difference between these two models are that while in FPC Model the heat absorbent (panel) is copper fins in the ETC model it is evacuated glass tubes. Murickens products are marketed through MURICKENS marketing system under the registered brand names `MG`. MG water heater has got a remarkable role to play in saving energy and its main attractions are very low maintenance cost ,unlimited usage and the non- requirement of a government license. Using most modern technology and arranging subsidies for all our solar products from the Ministry of New Renewable Energy, we are highly delighted to state that we have installed innumerable Thermal Heat Converting Devices in Kerala since 1992 with computer precision and unchallenging perfection.

Flat plate collector (FPC) – An insulated, weather-proofed box containing a dark absorber plate under one or more transparent or translucent covers. This is the most common type solar water heater. Murickens has tested and proved since 30 years that it is the most suitable type for Kerala's climatic conditions and get 80°C hot water with the help of only normal sunlight.We have Pressurized MG solar water heater and Non -pressure solar water heater in FPC Model

MG ETC SOLAR WATER HEATER FEATURES:

► Maintenance free.► Water heated up to 80°C. ► No electrical hazard.► No expenses after installation.►The best way of getting natural hot water for cooking and industrial purpose ► Copper capillaries. ► P U F system and glass wool to avoid conduction loss for storage tank.► Light weight.► T I G welded fins and tubes. ► Compact in size. ► Heat expulsion.►Fully automatic. ► High quality tempered 4mm thick front glass. ► Sturdy and weather proof design. ► Different Capacity starting from 125 liters to 10000 liters.► Custom built Solar Water Heater can also be provided. ► Two models FPC and ETC. ► In FPC special model we can connect pressure pump.

APPLICATIONS:

In Restaurants Clubs & Resorts.
In Hospitals Hostels Institutions
In Canteens and Laundries
For Swimming pool water heating
In Green buildings to earn renewable energy points
In most Process Industries
In Green buildings to earn renewable energy points
As In feed hot water to Boilers.
For Can washing at Dairy collection centers.
General washing & cleaning purposes.
In Agricultural sector.

INSTALLATION GUIDELINES:

Unobstructed sunlight (Shadow free area).
Flat (Preferable) or sloping roof area as requested.
Area should be near to point of usage (bathroom / kitchen) : to avoid long hot water piping and heat losses.
The system (solar collectors) should face south direction.
Fresh (cold) water tank at a height @ 5-7 ft above the system tank height.
5 years guarantee, onsite after sales service.

TECHNICAL FATURES OF SOLAR MG FPC (copper ) WATER HEATER:

MG solar water heater FPC model	125	150	200	250	500	1000	3000
Usage No. of person	30 ltr Per Person
Installation Area(sq. mt)	4	4	8	8	16	32	96
Water output temp. (° C)	85 ± 5 °C under normal Sunny conditions
Solar Flat Plate Collector Details
FPC Capillary Tube Model : No. fins	9/Panel
Collector Material	Copper
Collector box Coating	Extruded Aluminum Powder Coated
Collector Size	2050 mm x 1050 mm x100 mm per Panel
Insulation	High Density rock wool/puf insulation
Beading	Beading & Grommet - E P D M
Reflector	Aluminum foil of 0.015 mm thickness
Front Glazing	4mm Thick Toughened glass
Bottom Plate	Aluminum Sheet
Gasket	Gasket for flanges - Neoprene Rubber
Solar Collector Absorber
Coating	Selective black chrome – Nalsun
	TIG welded copper-copper FIN & Tubes with black nickel chromium
	Coating (solar selectively coated) Raised dia 12.5 mm
Insulation cover material	Aluminum sheet
Header	99.9 % copper 1” , 22 SWG
Riser	99.9 % copper ½ “ 24 SWG
Hot Water Tank Details
Tank	Single or multiplicatioon of 1000 for higher capacity
Tank type	Cylindrical – horizontal
Tank material (Inner)	Stainless Steel SS 304 (Food Grade) - 0.9 mm
Insulating material for tank	48 Kg/Cu,metre density Rock wool slab for standard model
Cladding	Aluminum Sheet
Beading & Grommet	E P D M
Working Principle	Thermosyphon
Electrical Back-up	No need - If need 2KVA up to 500 Litr.
Temperature of Hot Water	60 to 80 degree cel. On normal sunny days depending on the intensity of Sunshine.
Pressure pump model is available *Specifications are subject to change without prior notice".
